Shredder for Linux

Using the native interface

Shredder for Linux comes with a pretty nice, though Java based interface. It works very well indeed, but it might need a recent version for the Java Runtime Environment (jre). No problems where found using the original jre 1.5.0 from Sun. In case that problems occur it might be worthwile to get the real stuff driectly from Sun. (For example the Java-edition 1.4.2 delivered with OpenSuSE 10.1 seems to have some problems. GNUs Java Implementation version 4.1.0 seems also not sufficient.)

Note:Of course the real chess engine is a native Linux binary not using Java. Java is only used for the GUI components. So you do not need any java if you use another GUI with Shredder.
To blend Shredder a bit better with the ususal GNOME environment one might want to pass a parameter to the java call:

        -Dswing.defaultlaf=com.sun.java.swing.plaf.gtk.GTKLookAndFeel

It is suggested though to use this only from Java version 1.6 onwards. Earlier versions of Java offer a GTK Look&Feel, but the implementaion is pretty incomlete.
For Shredder passing this parameter is easiest to be added to the startup file. Just insert it right after the java call.

Interfacing Shredder

Shredder is split into two parts. First and foremost the engine, ie. the real chess program, the real strength of the package. The second part is the GUI which is currently implemented in Java. Though it has a pretty nice looking GUI one might want to have the Shredder engine available in other programs as well. As a pure UCI-Chess Engine so it doesn't natively work with most Linux-Chess-programs though. So here is how to set things up...

PolyGlot

PolyGlot is the key to the usage of UCI-Engines like Shredder in nearly all Unix/Linux programs. A usable shredder.eng is all needed for the usage of Shredder. Note that this shredder.eng sets all parameters known by the Shredder engine explicitly to their defaults, so you can see every parameter there you can use. See also the comments in the file. Additionally note that you need to adopt the paths!
Unfortunately, Shredder currently does not support the "OwnBook" UCI-command so it is necessary to build your own opening book from a suitable PGN-file. Such PGN-Files are available in numerous places. From there just export your selection to a PGN-file and call polyglot:

      ./polyglot make-book -pgn book.pgn -bin book.pbk

where book.pbk is the new opening book created.
NOTE: polyglot uses huge ammounts of memory for opening book creation and it works heavily in memory, so for it to finish in a decent period of time you want to have this memory available as real RAM, not as swap-space! From my tests a 600.000 games pgn-file requires some 800MB of RAM (using polyglots default settings), resulting in some 12MB for the opening book file.
NOTE 2: The same opening book can also be used for Fruit 2.1 as it's OwnBook. (Or you serve it to Fruit via the UCI-protocol of PolyGlot.)

scid

Although the standard version of scid is still available not much progress was made in that project for several years. Therefore, it is suggeested to use this extended version of scid which natively supports the use of UCI engines (among the numerous other enhancements that this version features). This eases up things considerably and also offers the ability to use multiline evaluation available in Shredder. In scid Shredder is just added as an engine and the UCI checkbox is set:

Via the Configure UCI engine button all internal engine parameters can be set from within the GUI without fiddling arround in any config files.

Using Shredder with the standard version of scid is easy as well. Once polyglot is set up correctly just use

      polyglot shredder.eng

as chess engine. Enter the path where shredder.eng lives into the appropriate field of scid and you're done.
To use Shredder to automatically annotate games is unfortunately not as straight forward as it might look like at first. The UCI standard requires that the evaluation of the chess engine has to be seen from the side to move. That is in a position where White has an advantage of one pawn unit the engine would return +1 if white is to move where as it would return -1 when it is black's turn. On the other hand no such rule is defined in the xboard protocoll so every author did it to his likeing (or just emulated the behaviour of crafty). Scid now requires that the engine emulates the behaviour of crafty that is the evaluation has to be positive if the position is to whites favour whereas it has to be negativ if it is to blacks, regardless who has the move.
As of Version 1.3 of polyglot there is no way to switch the way polyglot returns the evaluation codes. But, fortunately, polyglot is OpenSource so it was a very easy to come up with a polyglot-131.patch. Applying this patch against the polyglot 1.3 source enables the new configuration file option

      ScoreWhite = true

Setting this option in the eng-files will result in the patched version of polyglot to write the evaluation value correctly. Not setting it or setting it to false will give the old behaviour.
Note: The "Score Problem" affects all UCI-engines, so one has to set the ScoreWhite option for all engines to be used in scid. Several engine configuration files are available as example. There are also files which run actual Windows engines like ProDeo or SOS if someone wants to use such an engine.
Note 2: If one is using Shredders own GUI the current evaluation is always returned from Whites perspective. It is just the bare engine that changes sides while evaluating. Actually the author of Shredder stated that he prefered this switching evaluation for long time and only now comes to the conclusion that especially for analysis it is easier to have always the view from the same side.

Unfortunately the above feature enhancement did not make its way to 1.4 of polyglot which on the other hand offers quite some improvements. So here is polyglot-141.patch, adding the same feature as the above one to version 1.4. Hopefully Fabien will like it and include it in the upcoming releases.

Though somewhat beyond the scope of this document: How to apply the above patch?

Unpack polyglot's archive:

               unrar x polyglot_13.rar

Apply the patch:

                patch -p0 < polyglot-131.patch

Build polyglot:

               cd polyglot_13/src
               make

Copy the new polyglot-executable over the old one!!!

You have to admit: this is easy. Welcome to the wonderfull world of OpenSource! If you were unable to do the above yourself, try to learn it. But for the time beeing you can use polyglot131.gz or polyglot141.gz on a i386 compatible linux PC. This version was built on Debian 3.1 stable (sarge). No, no Mac or Windows version available. Sorry.

xboard

This is also really easy:

      xboard -fd /path/to/polyglotfiles -fcp "polyglot shredder.eng"

(The same goes with Fruit 2.1, just use fruit.eng instead of schredder.eng.)

jose

Jose knows how to deal with UCI-Engines by default, so you can just set up Shredder as a normal engine. Jose will give you all options adoptable in a nice GUI. But, this method has the disadvantage, that Jose currently (V1.3.6) does not know how to serve an Opening Book via UCI, so for really playing using polyglot here as well is probably a better setup.

Engine Parameters and Playing Style

Note 1: The following chapter describes some of the parameters one might set in PolyGlot's eng-Files. The syntax is for that reason the one used for PolyGlot.

Note 2: The extension for the polyglot files used here is "eng" and not "ini" as Fabien suggests. There are just to many ini's arround so another extension might be more convenient. Polyglot doesn't care about it anyway, and as long as file types are guessed by such silly things like extensions...
Shredder comes with various "engines" by default, which you can select from the Shredder GUI. Actually these multiple engines are implemented by setting various engine parameters for the standard Shredder engine. These parameters can be read from the .eng-files in clear text and dranslated to polyglot-settings immediately. For convenience the four additional personalities are available for download.

Limiting the strength of Shredder:
Note the for training probably very intersting options to limit Shredders playing strength. This is controled by the following two options:
```
            UCI_LimitStrength = false
            UCI_Elo = 1400

```
The meaning of UCI_Elo is obvious: it just sets the ELO-Level at which Shredder should play. However in order to enable this one has additionally to set UCI_LimitStrengh to true. To limit Shredder e.g. to the capablities of an arround 1400-ELO-player just set
```
            UCI_LimitStrength = true
            UCI_Elo = 1400

```
Multiline Analysis:
Most chess engines analyse only the best line in a current position and show there evaluation for this single line. Quite often though also some additional lines besides "the best line" are of interest. Shredder can do this multi-line-analysis on the engine level enabeling it's usage even with programs that do not know about it. The switch in question is MultiPV. E.g.
```
               MultiPV = 3

```
would instruct Shredder to analyse the three best lines in the game. Using Shredder e.g. within Scid would result in a 3 line output within the analysis window where one can see the evaluation for all these three lines. Scid e.g., knowing nothing about multiline analysis will only consider the best line on inserting comments. It just treats the additionall lines with ignorance. Though you can see them on the screen.
Note: F. Letouzey, the maker of PolyGlot strongly discurages to set this option in PolyGlots eng-files. Consider this as a hack which may or may not do what you wanted it to.
A better integration is given with Jose. Jose knows how to treat multi-line analysis and gives a really nice output.

Using the Bare Engine

Admitting that this is my prefered usage for crafty I tried to find out how to do this with Shredder as well. The main drawback of UCI is though, that it is definitely not designed for that usage. So, the easiest way to have a pure commandline interface is again by just using polyglot inbetween. Fire up polyglot on the shell passing it the shredder.eng (or whatever setup you want) from above and you can happily use it in a terminal window. Unfortunately I did not find a way yet to change the options of the engine form there, so one has to write them into the eng-file passed.

Theming Shredder

Admitting that I got that used to the design of xboard that actually all my Chess GUI's look like it I tried to figure out how to achieve this in Shredders GUI as well, and it turned out to be quite simple in fact.
Shredder uses 5 "slots" for board images in png format to display the actual board. Actually one can put whatever png of suitable format one likes into these slots. For that reason I created a xboard image and just copied it into slot 3 which (though not really a bad design) is the most unlikely I would have Shredder to look like.
Having created the board image all that needs to be done is tell Shredder it is actually there. This is done via the message files within the messages subdirectory. The necessary lines to adopt are (shown here for English.utf8):

         CM_3DBOARD1,    "Mahogany"
         CM_3DBOARD2,    "Blue Marble"
         CM_3DBOARD3,    "xboard"
         CM_3DBOARD4,    "Light Wood"
         CM_3DBOARD5,    "Dark Wood"

Theming Shredder Advanced Edition

Playing arround a bit with theming Shredder there arrose the need to have it done more automagically. Several things need to be done:

Find suitable, nice looking textures of wood or marble or whatever. Those can be found on the Internet for example.
Creating a full board of the texture: A realistic looking board does not use the same square all over the board but uses different textures for each square, but made of the same material. For that reason one needs a "full block" of the material in question.
Cutting the squares out of the full material.
Gluing the board together using the just created pieces.
Setting the board frame
Placing the board on a suitable desk i.e. a background.

All this can be done by hand, and the best tool to do it that way is of course The GIMP. But it actually involves quite some work and to play arround with several designs is almost impossible that way. So an automagic procedure is required. Here ImageMagick comes into play. ImageMagick can accomplish all functions required but it does this non-interactively, that is: just instruct it, get a nice cup of tea and let the computer do the work.

After some fiddling arround this resulted in ShredderBoard, a simple shell script that does all the work required except of course collecting the textures. This script is written for the bash-shell or compatibles. This means that you should have such a shell at hand. Almost every decent system has. If yours does not: this script is really simple straight forward just collecting calls to ImageMagick. Feel free to adopt.

First of all four textures are required:

Dark squares
Lite squares
Board frame
Background (i.e. the desk)

The call to the tool is straight forward:

         ShredderBoard DarkSquare.png LiteSquare.png Background.png Frame.png

Additionally

lines

can be appended if thin black lines should be drawn arround the squares.

Some examples are given here for download

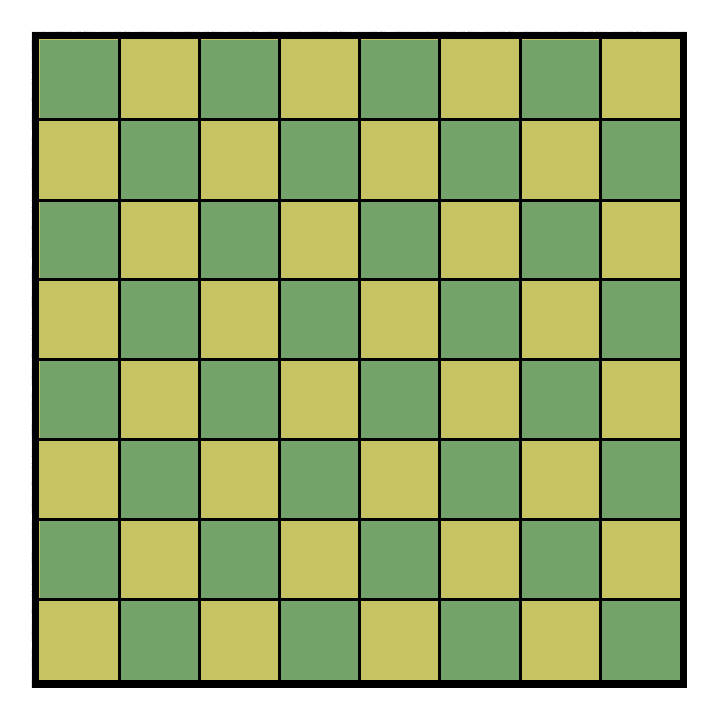

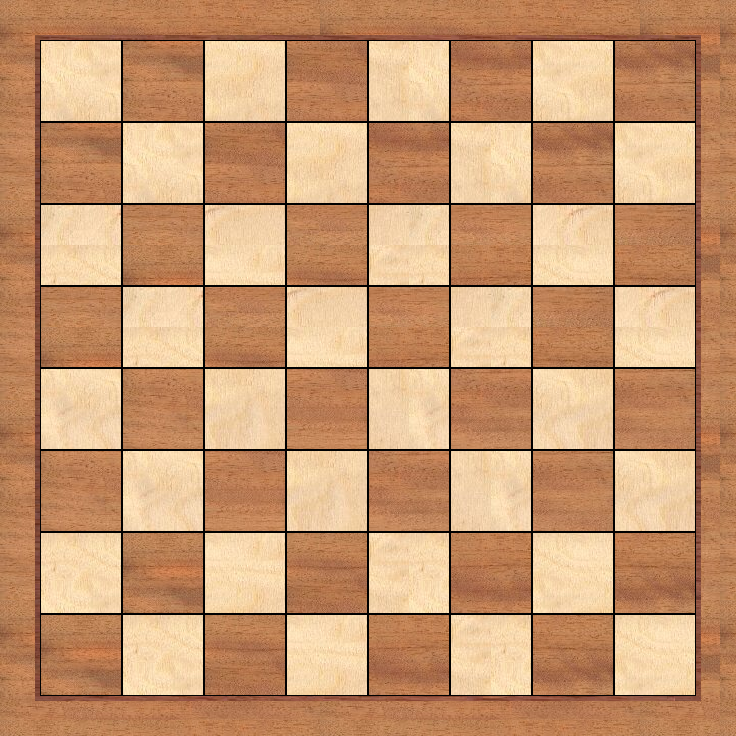

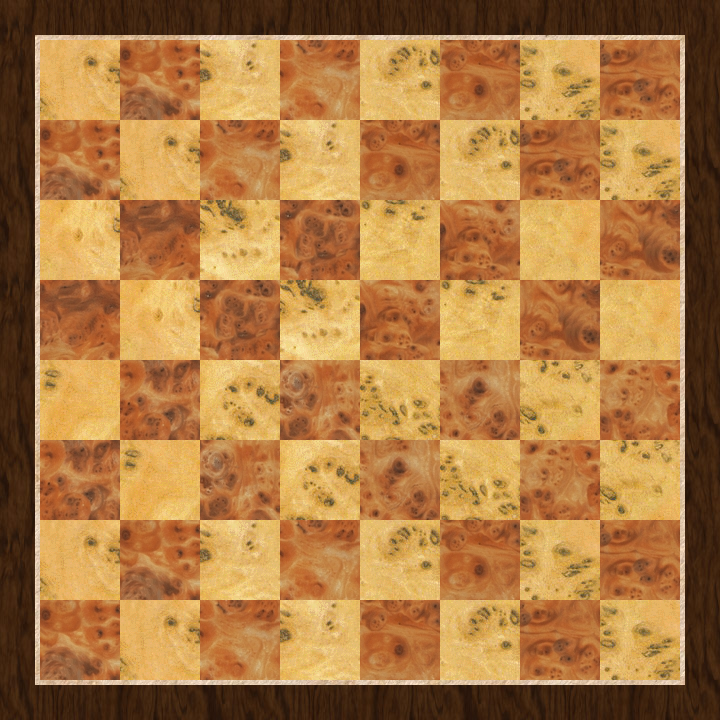

Classical xboard	Wood	Burlwood

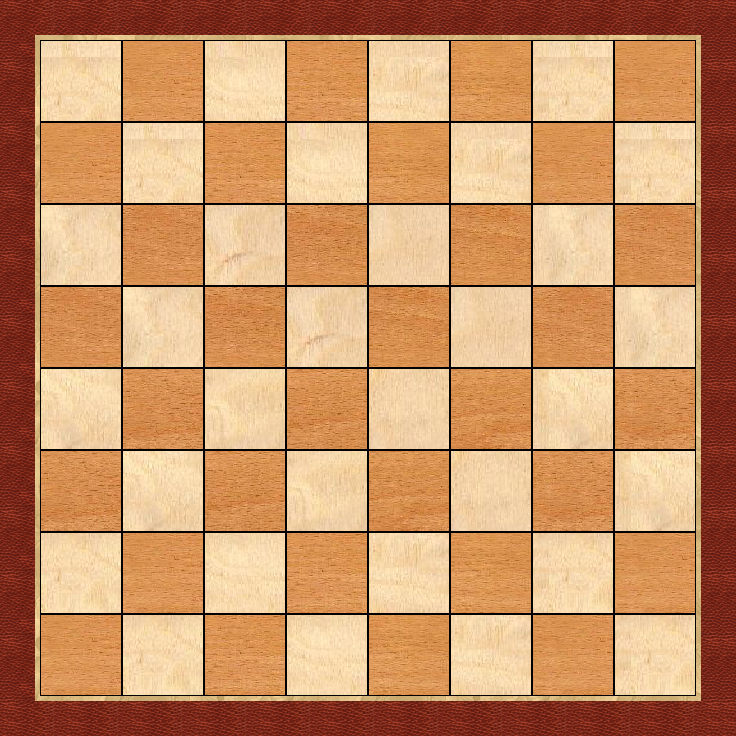

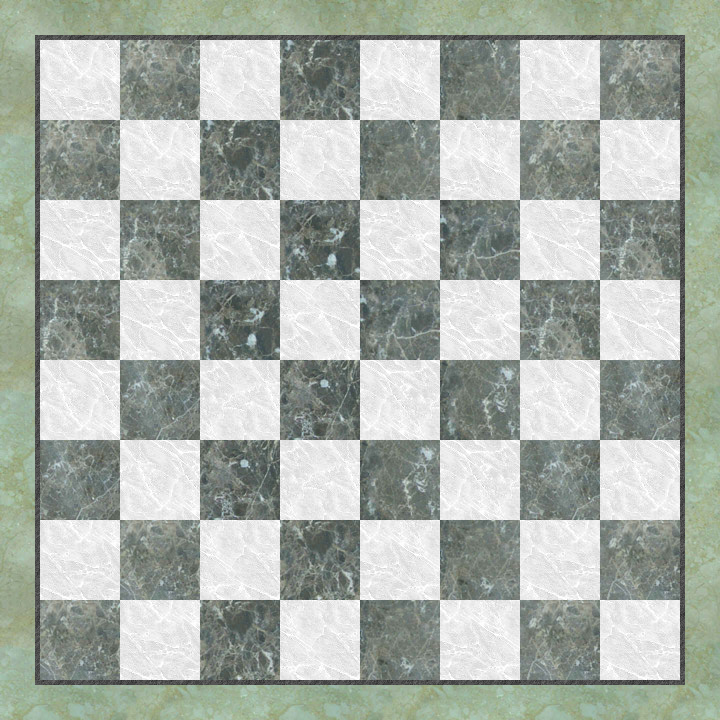

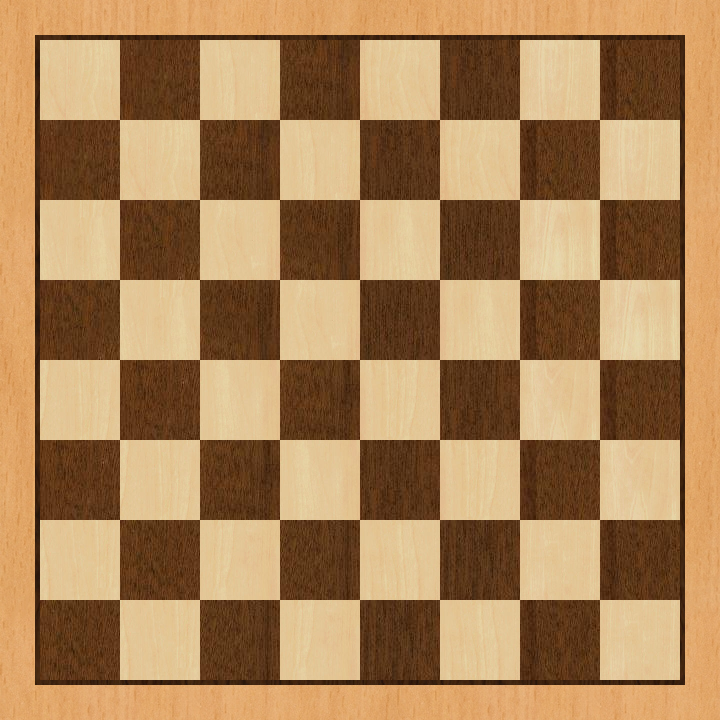

Lite Wood	Maple-Walnut	Grey Marble

Notes:

The ShredderBoard Script tries to create an optimal looking board by creating first of all a full piece of the material at hand. This is then cut into the pieces, and this is meant literaly: it creates a small bitmap for each square in the process. This means that some 70 files are created on the fly (and removed afterwards) and it means also that this can take quite some time. For this reason the script tells you what it does at the moment.

Some filemanagers (almost all the better ones) create image thumbnails while showing a folder. If you display the folder in which the script is working with such a filemanager this slows down the process considerably as your filemanager will update its thumbnails all the time. So closing such a view is advisable.

As in real life the result is mostly determined by the ingredients. Use high quality textures, and the larger the better as small textures of course tend to repetition whereas larger textures do not. Also look at the image quality. GIF (still widely used) is not optimal as it uses only 256 colours which is to few for realistic looking images in most cases. Using png or jpg is better.

Having said that png or jpg is better implies that you can use any format for the textures ImageMagick is capable of handling. This are almost all formats, so there is plenty of room to choose from.

Play arround with adding the black square separators. Sometimes they improve the look considerably while they just look plain ugly in other cases.

New Piece Sets

Though Shredder comes with very nice piece sets already one might want to create ones own sets. This is actually as simple as for the chess boards. All one has to do is to place the pieces as png-bitmaps on a transparent background. One can do this most easily using The Gimp interactively. The necessary file has to be 696x116 pixels with transparent background (in case of existing sets one wants to add an alpha channel if it does not exist yet) one for the white pieces and one for the black counterparts. Each piece has therefore a size of 116x116 pixels. The pieces are now placed on this transparent background in the order pawn, knight bishop, rook, queen, king. One file for the black and one for the white pieces each.

Hint: If one wants to use a dark wood for the board, the visibility of the pieces is greatly enhanced by using a thin white border arround each.

Hint: For shadows use proper transparencie values, do not just add a "coloured shadow" this will not give a nice look.

Once the pieces are created they have to be copied over one of Shredders internal sets. That is one has to replace the one set of the files

alpha_black.png	alpha_white.png
berlin_black.png	berlin_white.png
media_black.png	media_white.png
ortho_black.png	ortho_white.png

by the new one.

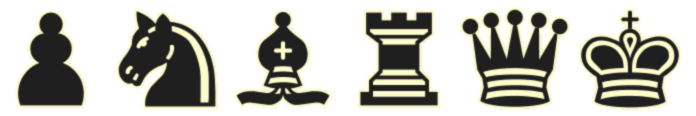

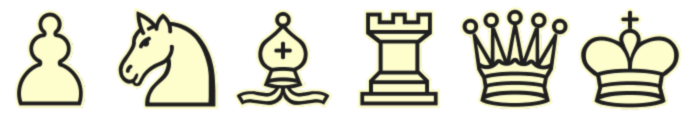

A new Merida White and Merida Black set may serve as example. These pieces were generated from screenshots of the Jose chess GUI using a free font as input. The are just simple Merida Chess pieces but with a light cloured thin frame for usage with dark boards like e.g. Maple Walnut. Additionally they use ivory instead of bright white for the light parts.

The same Merida White and Merida Black as above but without the thin white halo.

Sound

Shredder uses Java's internal sound interface which sits directly upon the ALSA subsystem which is very nice as it interfaces seemlessly with the rest. Setup of the Linux Sound System is far beyond the scope of this document, but just some notes on what may go wrong as the question arrose recently.
For historic reasons there are unfortunately quite a lot sound subsystems for Linux on the market. OSS, which is the oldest, is still in quite some use an may give some headache as OSS-Applications write directly to /dev/dsp, which ALSA also creates for sake of compatibilty. The trouble comes about if the sound card, like the majority of the cards on the market today, does not have a hardware mixer built in but rely on software mixers.
Problems one might experience are:

No sound from Shredder
This is cause some OSS application is blocking the sound device exclusively.
No sound from other applications once Shredder played a sound
this results from your sound card to not support hardware mixing.

The solution to these problmes are immediate:
wrap the OSS-application into the aoss tool that comes with ALSA so that it works through the ALSA-Mixer. The invocation of soundtool would then look like

            aoss soundtool

Additionally Java itself might need to be warped in the aoss tool in these circumstances. This seems a problem of Java. Also note that this works only if you set up your software mixer properly! (See /etc/asound.conf)
Note: All these changes are an investment into the future as nowadays ALSA is Linux' default sound subsystem. So it's worth the efford to get it working if one uses still an older setup.
Note: Proper ALSA-Setup has nothing to do with Shredder and will not be covered here. In Linux on an IBM ThinkPad T41p is a coverage for the common Intel Soundchip with some hints on how to get it working though. For almost every soundcard a document describing how to set it up can be found at the ALSA-Project.

Bugs & Fixes & Known Limitations

All tags marked in green are fixed in the first patch dating 05/11/05 for Shredder 9/Linux. Thanks to Stefan Meyer-Kahlen for his quick support and open mind towards suggestions.
See also November News for details how to obtain the patch.

No Special Characters (aka Umlauts): Shredder's GUI wants to have the language set to "de_DE-UTF8". If you (like me ;) use some other language just put
```
            export LANG="de_DE.UTF-8"

```
into the startup script Shredder9 in Shredders Install path.
Shredder complains about "start me only form my home dir". Of course you can just do like it whishes :) If this is not practiable for some reason put
```
         SHREDDER_HOME=`dirname $0`

```
into the startup script. (Note the backticks!)
Slow GUI: This is a bit more complicated, and actually as a work arround I found that nicing the engine gives a more responsive GUI. Alternatively you can use the excellent engine in one of the GUIs described below.
Tablebases: Currently Shredder does not support Nalimov Tablebases in the Linux version. Hopefully this will change soon. The setup files below set the appropriate paths already. (At the moment these settings are just ignored.)
Opening book: Shredder relies on the UCI-GUI to serve the opening book and has no code implemented to read any opening book itself. Not even the one that comes with the Shredder GUI. (More technically: the UCI-Command "OwnBook" is not implemented.)
Desktop Integration is actually the easiest if you use ROX. Just link Shredder9 to AppRun and place a suitable AppIcon.xpm in Shredders directory. This works perfectly.
